NPSHgraph

Pump curves, system curves, and NPSH margin

Purpose-Built

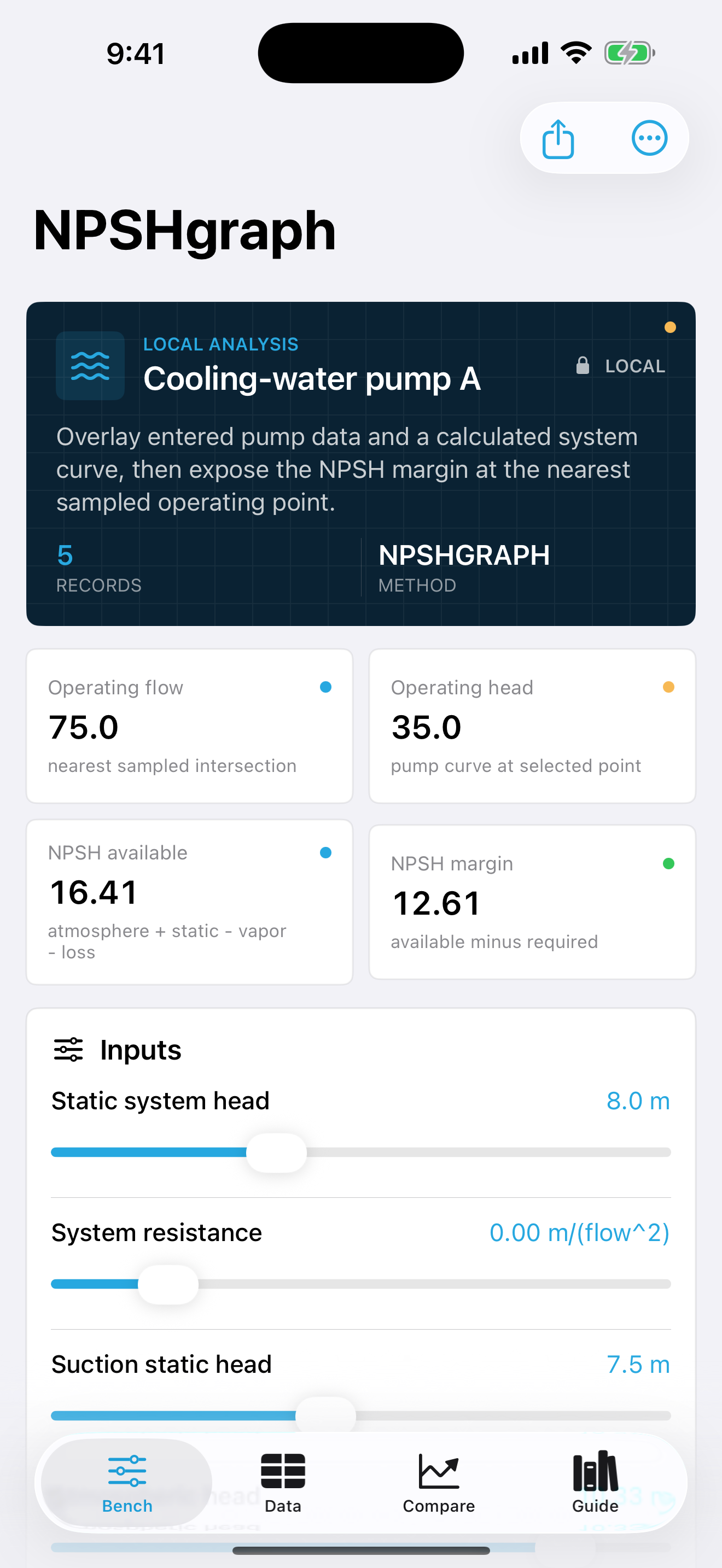

An on-device pump-system workbench for plotting duty points, testing operating changes, and screening available versus required net positive suction head.

Core Tools

Pump and system curve intersection
NPSH margin and sensitivity checks
Forty bundled pump-reference plates

Private by Design

No account, ads, tracking, third-party analytics, or developer-operated backend. Your work stays on your device unless you deliberately share or export it.

Use It Responsibly

Results are engineering planning aids. Confirm manufacturer curves, fluid properties, site elevation, piping conditions, and required safety margins.
