Layerohm: PCB Stackup

iOS app by Shadowfetch · App Store ID 6792827331 · iOS

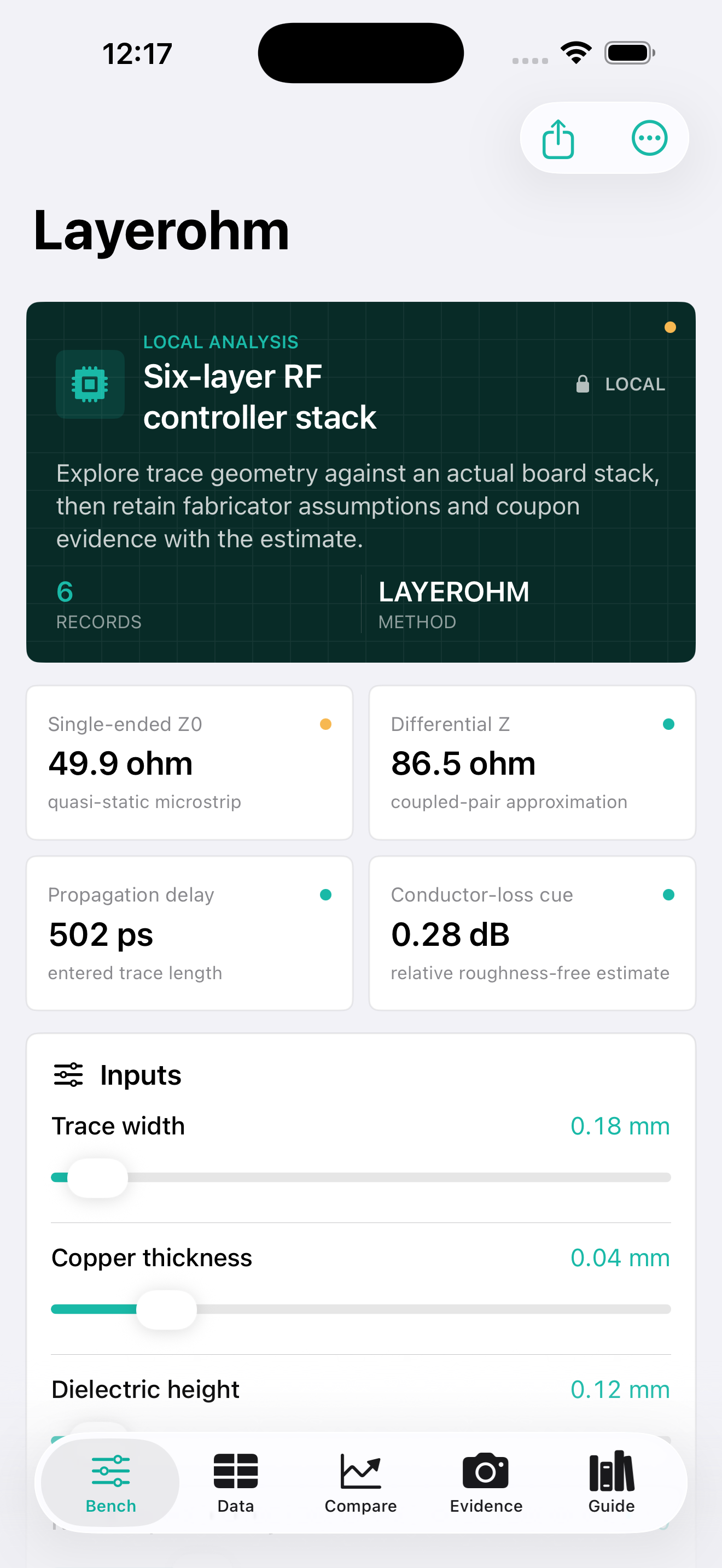

Layerohm: PCB Stackup is a focused, fully on-device app. PCB stackup and transmission-line lab for microstrip, stripline, grounded coplanar waveguide, differential pairs, propagation delay, conductor/dielectric loss, and thermal vias.

Key Features

Microstrip impedance sweep
Differential, delay and loss cues
Editable stack records
Local coupon-photo evidence
Editable sample data and CSV import
Side-by-side scenario comparison
Local PDF evidence export
Fifty-three original offline reference plates

One-Time And Private

One paid download; no subscription or in-app purchase
No account, advertising, analytics, tracking, or developer-operated backend
Core features and bundled content work offline
Work remains on device unless you deliberately share or export it through an Apple system interface

Impedance estimates are pre-layout aids. Confirm the final stackup, material properties, copper geometry, fabrication tolerances, field-solver results, and manufacturer guidance.

Get it. Layerohm: PCB Stackup is on the App Store for iPhone and iPad.

Privacy and support

Privacy information for Layerohm: PCB Stackup · Support for Layerohm: PCB Stackup

Questions: shadowfetchapps@gmail.com
